EV Circuit protection units
A-Type EV RCBO kit
This unit provides earth leakage and overload protection for most electrical vehicle installations.
The dual switch action indicates the type of fault detected.
A-type high immunity
6-40A current
30ma AC earth leakage
6ma DC earth leakage
| Part code: | Description | Dimensions (WxHxDmm) |
|---|---|---|
| WMEV206B | 2 Module enclosure 6A B curve | 74x175x90 |
| WMEV210B | 2 Module enclosure 10A B curve | 74x175x90 |
| WMEV216B | 2 Module enclosure 16A B curve | 74x175x90 |
| WMEV220B | 2 Module enclosure 20A B curve | 74x175x90 |
| WMEV225B | 2 Module enclosure 25A B curve | 74x175x90 |
| WMEV232B | 2 Module enclosure 32A B curve | 74x175x90 |
| WMEV240B | 2 Module enclosure 40A B curve | 74x175x90 |
| WMEV206C | 2 Module enclosure 6A C curve | 74x175x90 |
| WMEV210C | 2 Module enclosure 10A C curve | 74x175x90 |
| WMEV216C | 2 Module enclosure 16A C curve | 74x175x90 |
| WMEV220C | 2 Module enclosure 20A C curve | 74x175x90 |
| WMEV225C | 2 Module enclosure 25A C curve | 74x175x90 |
| WMEV232C | 2 Module enclosure 32A C curve | 74x175x90 |
| WMEV240C | 2 Module enclosure 40A C curve | 74x175x90 |
| WMEV332B-32 | 3 Way enc, 32B RCBO + 32A MCB | 110x175x90 |
| WME332C-32 | 3 Way enc, 32C RCBO + 32A MCB | 110x175x90 |
| WMEV332B | 3 Way enc, 32A RCBO + Blank | 110x175x90 |
| WMEV332C | 3 Way enc, 32A c curve RCBO + Blank | 110x175x90 |
| WMEV340B | 3 Way enc, 40A B curve RCBO + Blank | 110x175x90 |
Metal EV protection unit
A-Type EV RCBO kit with surge protection
WMRC enclosure are finished in white polyester powder coating. Multiple circular cable entry knock-outs (25&32mm) on the top and bottom. It is ideal for electrical vehicle installations. Twin handle system for the bi-directional RCBO, black handle controls MCB function, white handle controls RCD function. If only black handle trip off, it indicates overload or short circuit. If both white and black handle trip, it will indicate residual current fault. This will assist electrician to solve the electrical fault quickly, saving time and money.
| Part code: | Description | Dimensions (WxHxDmm) |
|---|---|---|
| WMRC32BSP | 4 way metal A Type 32A B curve RCBO + Surge | 110x175x91 |
| WMRC32CSP | 4 way metal A Type 32A C curve RCBO + Surge | 110x175x91 |
| WMRC40BSP | 4 way metal A Type 40A B curve RCBO + Surge | 110x175x91 |
| WMRC40CSP | 4 way metal A Type 40A C curve RCBO + Surge | 110x175x91 |
Technical data
| Standard | BSEN61439-3 BSEN61009-1 BSEN61643-11 |
| No. of modules | 4 |
| Rated voltage | 230V |
| Rated current | according to the rated current of the RCBO |
| Frequency | 50Hz |
| Cable entry | Selection of knockouts |
| Incoming terminal capacity | 35mm² max |
| Terminal type | cage clamp |
| Protection class IP rating | IP40 |
| Sure protection | type 2 |
| Visual indication of surge protection | Green = good, Red = bad |
| Device mounting | 35mm din rail |
| Ambient temp | -25°C --- +40°C |
Plastic EV protection unit
Weatherproof A-type EV RCBO kit with surge protection
WPRC enclosures are ideal for electrical vehicle installations. Supplied with A type RCBO which detect AC and pulsating DC earth leakage up to 6ma Twin handle system RCBO, black handle controls MCB function, white handle controls RCD function. If only black handle trip off, it indicates overload or short circuit. If both white and black handle trip, it will indicate residual current fault. This will assist electrician to solve the electrical fault quickly, saving time and money.
| Part code: | Description | Dimensions (WxHxDmm) |
|---|---|---|
| WPRC32BSP | IP65 A-Type 32B RCBO + Surge | 140x205x952 |
| WPRC32CSP | IP65 A-Type 32C RCBO + Surge | 140x205x95 |
| WPRC40BSP | IP65 A-Type 40B RCBO + Surge | 140x205x95 |
| WPRC40CSP | IP65 A-Type 40C RCBO + Surge | 140x205x95 |
Technical data
| Standard | BSEN61439-3 BSEN61009-1 BSEN61643-11 |
| No. of modules | 5 |
| Rated voltage | 230V |
| Rated current | according to the rated current of the RCBO |
| Frequency | 50Hz |
| Cable entry | Selection of knockouts |
| Incoming terminal capacity | 35mm² max |
| Terminal type | cage clamp |
| Protection class IP rating | IP65 |
| Sure protection | type 2 |
| Visual indication of surge protection | Green = good, Red = bad |
| Device mounting | 35mm din rail |
| Ambient temp | -25°C --- +40°C |
Metal weatherproof IP65 EV protection unit
WMIP enclosures are ideal for electrical vehicle outdoor installations. Supplied with A type RCBO which detect AC and pulsating DC earth leakage up to 6ma .Twin handle system RCBO, black handle controls MCB function, white handle controls RCD function. If only black handle trip off, it indicates overload or short circuit. If both white and black handle trip, it will indicate residual current fault. This will assist electrician to solve the electrical fault quickly, saving time and money.
| Part code: | Description | Dimensions (WxHxDmm) |
|---|---|---|
| WMIP5 | 5 mod IP65 grey metal Enc | 164x232x102 |
| WMIP5-W | 5 mod IP65 white metal Enc | 164x232x102 |
| WMIP32BSP | 32A B curve RCBO + Surge | 164x232x102 |
| WMIP32CSP | 32A C curve RCBO + Surge | 164x232x102 |
| WMIP40BSP | 40A B curve RCBO + Surge | 164x232x102 |
| WMIP40CSP | 40A C curve RCBO + Surge | 164x232x102 |
Technical data
| Standard | BSEN61439-3 BSEN61009-1 BSEN61643-11 |
| No. of modules | 5 |
| Rated voltage | 230V |
| Rated current | according to the rated current of the RCBO |
| Frequency | 50Hz |
| Cable entry | Selection of knockouts |
| Incoming terminal capacity | 35mm² max |
| Terminal type | cage clamp |
| Protection class IP rating | IP65 |
| Sure protection | type 2 |
| Visual indication of surge protection | Green = good, Red = bad |
| Device mounting | 35mm din rail |
| Ambient temp | -25°C --- +40°C |
Features
1) Non-combustible aluminum enclosure is resistant to rust,
rot, corrosion, and fires
2) Lockable design, can be locked with a padlock
3) IP65 rating provides unbeatable protection against dust and
water for your devices
4) Pulsating dc 6mA protection
5) Short-circuit protection , overload protection, earth leakage
protection, protection against electric shock
6) Surge protection, protection against lightning strikes
7) Large and accessible wiring space
8) Raised Din rail improves cable routing
9) M20 knockouts can be drilled to M32
10) Recommended Torque: 2.5Nm
11) Complies with 18th Edition BS 7671
12) Enclosure manufactured and tested to BS EN 61439-3
Weatherproof IP65 EV kit
This unit is used especially for electric vehicle installations
Which require DC earth leakage detection.
B-type RCD and MCB to protect against smooth and
Pulsating DC leakage.
B-type RCD DC earth leakage protection
MCB provides overload protection
IP65 weatherproof
| Part code: | Description | Dimensions (WxHxDmm) |
|---|---|---|
| WPEVKIT63-EC | 63A RCD + 40A C MCB | 140x205x95 |
EV kit
This unit is used especially for electric vehicle installations Which require DC earth leakage detection. B-type RCD and MCB to protect against smooth and Pulsating DC leakage.
B-type RCD DC earth leakage protection. MCB provides overload protection
| Part code: | Description | Dimensions (WxHxDmm) |
|---|---|---|
| WEVKIT63 | 63A RCD + 40A C MCB | 110x175x91 |
EV Connection Unit
WCED E.V Connection unit, for providing protection and isolation of E.V sockets with built in RCBO protection.
100A Main switch for isolation.
32A MCB for overload protection.
(Other MCB Ratings Available please enquire)
| Part code: | Description | Dimensions (WxHxDmm) |
|---|---|---|
| WEVCU | 100A Main switch & 32A MCB | 110x175x91 |
| WEVCU32B | 100A M/S +32B MCB | 110x175x91 |
| WEVCU40B | 100A M/S + 40B MCB | 110x175x91 |
| WERM6332 | 63A RCD A Type +32A MCB | 110x175x91 |
EV Connection Unit with surge protection
WCED E.V Connection unit, for providing protection and isolation of E.V sockets with built in RCBO protection.
100A Main switch for isolation.
32A MCB for overload protection.
(Other MCB Ratings Available please enquire)
| Part code: | Description | Dimensions (WxHxDmm) |
|---|---|---|
| WEVCU32BSP | 100A M/S + 32B MCB + SPD | 175x110x91 |
| WSRC532BSP | 100A M/S + 32B MCB + SPD + Kwh | 175x110x91 |
EV Connection Unit with surge protection
WCED E.V Surge Connection unit, provides surge and overload protection and isolation of E.V sockets with built in RCBO.
100A Main switch for isolation.
32A MCB for overload protection.
(Other MCB Ratings Available please enquire)
| Part code: | Description | Dimensions (WxHxDmm) |
|---|---|---|

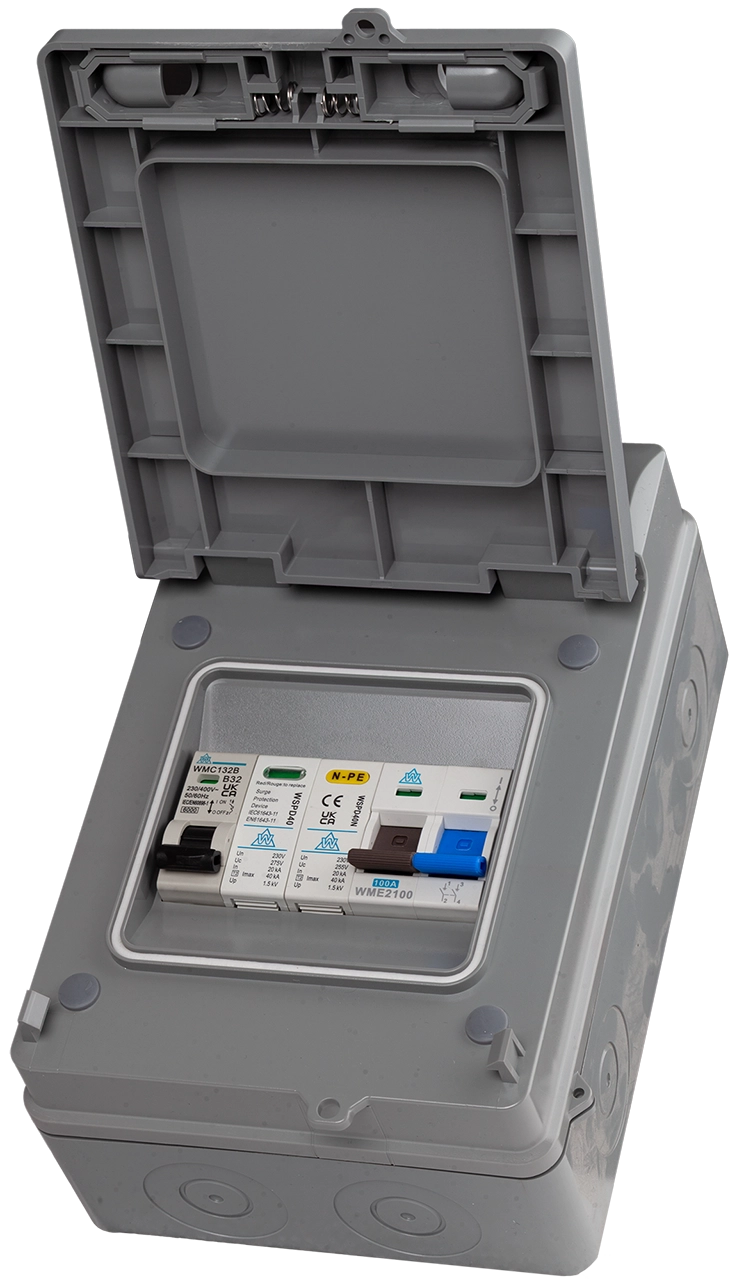

| WPEVCU32BSP | 100A M/S + 32B MCB + SPD in 5 way IP65 enclosure | 140x205x95 |
Three phase SPD unit
WMCUSP440C
Three phase SPD unit consisting of an 8 way, IP40 metal enclosure with 4 pole 20kA/40kA type 2 surge protector and 4 pole 10kA MCB.
WRCUSP440C
Three phase SPD unit consisting of an 8 way IP40 metal enclosure, with 4 pole 20kA/40kA type 2 surge protector and 4 pole A-type 30mA RCBO.
